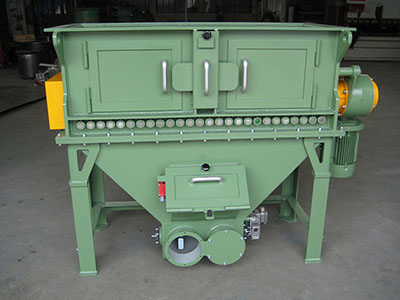

Crusher DS - professional mill for styropor waste

Operation of the machine STYRO-CUT 500	Grinding line for Styrofoam 25m3 ECOPLAST

Specifications		Capacity of the device

Power supply	5,5 kW / 380 V	Capacity	approx.30 m³/ h
Number of revolutions	120 / min	Input funnel dimension/height	approx. 1.500 x 600 mm
Dimensions W x D x H	2.030 mm x 1.100 mm x 1.550 mm	Grain size (with standard sieve)	up to 50 mm
Mass	approx. 1.800 kg
* The capacity of the flow depends on the material and the size of the sieve
* Posibility of changing sieves

DEVICES and SYSTEMS for REGRANULATION of WASTE EXPANDED POLYSTYRENE (EPS, styropor)

EPS is a solid plastic material with a low mass and good mechanical properties. In a 1 m3 block of EPS there are 3 to 6 million of closed cells that contain approximately 98 per cent of air, which makes EPS a remarkably good insulator.

In our company we have developed devices for the processing of minor quantities as well as systems for mass processing of waste EPS. The main aim of recycling by means of the mentioned devices is the preservation of energy, work and materials which have already been invested in the products, or in other words the preservation of an uncontaminated form of granulate or slightly contaminated expanded form of granulate.

Such granulate can be used:

In the uncontaminated form in the production of new EPS products, or in the furniture industry, where it is used as a filler (uncontaminated form).
In slightly contaminated form in the production of less demanding insulation products (facades) or in the production of concrete with a decreased specific mass in the construction industry.
